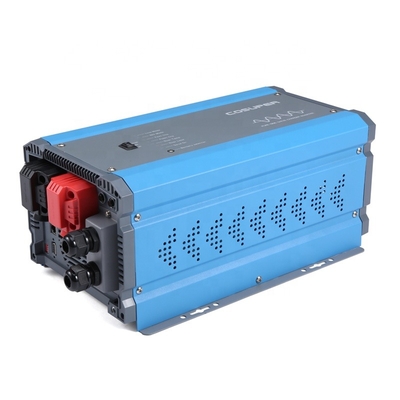

Name: Cosuper CPT 1000w Series Inverter Charger 12 v W Power Inverter 1000 12v 220v 525*255*195 (L*W*H) (mm)
Brand: Cosuper CPT 1000w Series Inverter Charger 12 v W Power Inverter 1000 12v 220v 525*255*195 (L*W*H) (mm)
SKU: CPT1000
Rating: 4.8 (197 reviews)

Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat

Eigenschaften

Technische Daten

Network: SDK, RS232

Customized support: Software reengineering

Model Number: CPT1000

Type: DC/AC Inverters

Output Type: Single

Output Current: 0~75A

Output Frequency: 50/60Hz

Size: 525*255*195(L*W*H)(mm)

Weight: 16kg

Certificate: CE, FCC, ROHS

Surge Power: 9000W

Output Waveform: True sine wave( THD<5%)

Power Factor: 0.1~1

Efficiency: 85%~90%

No Load Power: <50W( Power saving mode)

Transfer Time: <8 ms

Remote Control: RJ45

Operating Temp: -20~50â„ƒ

Working Humidity: 20~90%RH

Grundinformation

Zertifizierung: CE, FCC, ROHS

Model Number: CPT1000

Zahlung und Versand AGB

Packaging Details: Standard Export packing

Supply Ability: 5000 Piece/Pieces per Month

Produkt-Beschreibung

Power inverter 1000w 12v 220v

1.Professional solution for Off-Grid System

2.Perfect combination of Low-Voltage UPS and inverter

3.Self-consumption down 50% than low frequency inverter

4.Dry contact : no AC output or O.T,O.L, UV to other device

5.Remote control RJ11/RJ45: PTM-10 and PTM-12 (optional)

6.Input AC : power via grid power or Generator compatibly

7.Pure sine wave output ,input & output fully isolation

8.Three-gear switches, with energy saving mode

9.Attractive appearance with V0 plastic

10.AC input to start inverter function

11.Input polarity /UVP/OVP/OSP/OLP/OTP

12.Network via RS232 Communicate Protocol ( optional)

13.DIP Switches : Output frequency, A output range , charger current ,DC/AC priority

Product Description

Specifications
Models	CPT1000	CPT1500	CPT2000	CPT3000	CPT4000	CPT5000	CPT6000W
Output Power	1000W	1500W	2000W	3000W	4000W	5000W	6000W
Surge Power	3000W	4500W	6000W	9000W	12000W	15000W	18000W
DC Input Voltage	1224VDC	12/24/48VDC			24/48VDC
Output Voltage	100/110/120VAC±5%			220/230/240VAC±3%
Output Frequency	50/60Hz ±0.5%
Output Waveform	True sine wave(THD<5%)
Power Factor	0.1~1
Efficiency	85%	86%	87%	88%	85%	86%	88%
No Load Power	<50W(Power save mode)
Transfer Time	<8 ms
AC Range	90~135VAC/190~245VAC
Voltage Range	10.0~16.0/20.0~31.0VDC	10.0~16.0/20.0~31.0/42.0~62.0VDC			20.0~31.0/42.0~62.0VDC
Charge Current	70/35/20A
Fault Indication	LED Red
Remote Control	RJ45: PTM-10 or PTM-12
Safety	UL458			LVD(EN60950)
EMC	FCC Part15 Class A			CE (EN55022:2006+A1:2007)
Operating Temp	-20~50℃
Working Humidity	20~90%RH
Storage Temp	-30~70℃
Cooling	Automatically controlled cooling fan
Weight (kg)	16	17	20	24	30	33	38
Size (mm)	455255195(LWH)		525255195(LWH)		650255195(LWH)
Application	Vehicle,Yacht,Solar power systems,Portable equipments,Power tools,Home and Office appliances

New Design CPT Series Intelligent Pure sine wave inverter charger:

RV Car Inverter Diagram

Pure Sine Wave Charger Inverter Details Pictures

Company Information

Suzhou Cosuper Energy Technology Co., Ltd. (www.cosuper.com) specializes in the R&D and manufacturing of electrical & electronics products, and it is a new energy company, which commits to the application of solar power. Its main products are inverters, inverter/chargers, batteries, theyare used in a variety of applications in the RV, marine, military, solar system, EMS, bus, work service vehicle and commercial truck markets. Cosuper ensures its products are put through extensive reliability testing and certifies its products to comply with various regulatory standards to meet or exceed the applicable requirements for safety, quality, efficiency and environment. With more than ten years of designing, engineering and manufacturing experience, Cosuper offers an enviable mix of advanced technology and unmatched service to our customers.

Most of our products are certified to CE, PSE, FCC, ROHS, ETL, standards and Cosuper also operates under a management system that is certified to IS0 9001:2008.

Packaging & Shipping

Packing: All Cosuper products are well packed to avoid any damages that may occur during the transportation to protect the inverter or inverter/charger well and safe. The standard packing is carton with protective foam and wooden case will be applied according to the specification of different products.

Shipping: Cosuper products will be shipped out on time by express, air, or sea according to customer's requirements.

Certifications

Most of our products are certified to CE, PSE, FCC, ROHS, ETL, standards and Cosuper also operates under a management system that is certified to IS0 9001:2008.

FAQ

FAQ

Q 1. What kind of material of transformer?

A. 100% pure copper transformer , NOT Copper-clad aluminun

Q 2. The standard of package?

A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.

Q 3. Would you accept to use our logo ?

A.If you have good quantity,it absolute no problem to do OEM.

Q 4. Where is your market?

A. Our products are popular in USA, Japan, Europe , Carmeroon, Sounth Africa ,Egypt ,Cambodia, Australia ,Canada ,Jamaica,Brazil and so on.Hope to cooperation with you ~

Q 5. Application ?

A.Viehicle,Yacht,Solar power system,Portable Equipments, Power tools,Home and Office appliances.

Q6. What kind of certificate you have ?

A. Our company already achieve ISO, CE ,ROHS,FCC,PSE.Also have patent for an invention

Q 7. What's the payment term?

A. We accept TT,Paypal ,Western Union ,MoneyGram

Q 8. Delivery time ?

A. In normal it will take about 14 days
