Startseite /Produkte/Solarhybrid-Wechselrichter/MUST PH1800-PLUS High Frequency Hybrid Inverter Solar Home Hybrid Energy System Solar Inverter 272*355*100 mm; 297.5*468*125 mm

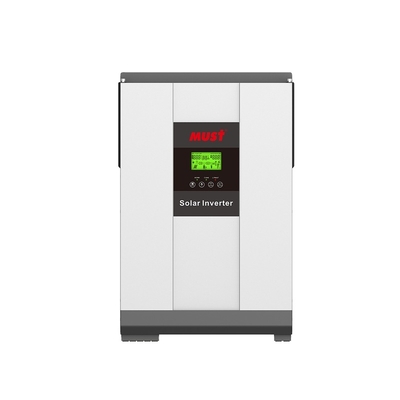

MUST PH1800-PLUS High Frequency Hybrid Inverter Solar Home Hybrid Energy System Solar Inverter 272*355*100 mm; 297.5*468*125 mm

3 Pieces
MOQ
$378.00(3 - 29 Pieces) $365.00(>=30 Pieces)
Preis
MUST PH1800-PLUS High Frequency Hybrid Inverter Solar Home Hybrid Energy System Solar Inverter 272*355*100 mm; 297.5*468*125 mm
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Model Number: PH1800 PLUS
Input Voltage: 220V 230V 240V
Output Voltage: 220V 230V 240V 380V
Output Current: 13-25A
Output Frequency: 50/60HZ
Output Type: Single, Triple
Size: 272*355*100 mm; 297.5*468*125 mm
Type: DC/AC Inverters
Inverter Efficiency: 93%
Certificate: CE; IEC
Warranty: 1year, 1year
Weight: 7-14kgs
Product name: Grid Solar Inverter
Rated power: 1kw to 17.5kw
Display: LCD+LED Display
Output waveform: Pure Sine Wave Solar Inverter
Efficiency: 93%-97% ( HIGH EFFICIENCY )
Inverter type: Grid Tie
Communications: RS485/WiFi/GPRS(Optional)
Protection: Short Circuit Protection
Power factor: 1.0
Grundinformation
Zertifizierung: CE; IEC
Model Number: PH1800 PLUS
Zahlung und Versand AGB
Produkt-Beschreibung
Product Description

***************ANY QUESTIONS, INQURIES WELCOMED TO Monica !!!!***************

WHATSAPP/WECHAT: 0086 157 1209 1318

MUST PH1800-PLUS high frequency hybrid inverter solar home energy system hybrid solar inverter

High Frequency On/Off Grid Hybrid Solar Inverter

PH1800 Plus Series (2-5.5KW)

PH1800 Plus series hybrid solar inverter, it can realize self-consumption and feed-in to the grid from solar energy with best solution according to your setting. During the daytime solar power can run your home appliances and if there is extra solar power it will feed-in to the grid or you can choose to save them on the battery to backup when power failure or nighttime.

Features:
  • Rated Power 2KW-5.5KW
  • Pure sine wave output
  • Self-consumption and Feed-in to the grid
  • Programmable supply priority for PV, Battery or Grid
  • User-adjustable battery charging current suits different types of batteries
  • Programmable multiple operation modes: Grid-tie, off-grid and grid-tie with backup
  • Multiple communication for USB, RS-485, Modbus
  • Monitoring software & Wifi Kit for real-time status display and control
  • Parallel operation up to 3 units

SPECIFICATION

MODEL PH18-2024 Plus PH18-3024 Plus PH18-3048 Plus PH18-4048 Plus PH18-5048 Plus PH18-5548 Plus
Nominal Battery System Voltage 24VDC 48VDC
INVERTER OUTPUT
Rated Power 2000W 3000W 3000W 4000W 5000W 5500W
Surge Power 4000W 6000W 6000W 8000W 10000W 11000W
Waveform Pure Sine Wave
AC Voltage Regulation (Batt.Mode) 220VAC-240VAC(setting)
Electric Current 8.7A 13A 17.4A 21.7A 23.9A
Inverter Efficiency(Peak) 93%
Transfer Time 10ms(For for Personal Computers) 20ms( For Other Home Appliance)
AC INPUT
Voltage 230VAC
Selectable Voltage Range 170~280VAC(For Personal Computers),90~280VAC(For Home Appliances),184~253VAC(VDE4105)
Frequency Range 50Hz/60Hz (Auto Sensing)
BATTERY
Normal Voltage 24VDC 48VDC
Floating Charge Voltage 27.4VDC 54.8VDC
Overcharge Protection 31VDC 60VDC
SOLAR CHARGER & AC CHARGER
Maximum PV Array Open Circuit Voltage 145VDC
PV Array MPPT Voltage Range 30-130VDC 64-130VDC
Standby Power Consumption 2W
PV Array MPPT Voltage Range 2000W 4000W
Maximum PV Array 80A
Maximum Efficiency 98%
Maximum AC Charge Current 60A
Maximum Charge Current 140A
MECHANICAL SPECIFICATIONS
Machine Dimensions (W*H*D) 272*355*100 mm 297.5*468*125 mm
Net Weight(Kg) 7.4 14
Package Dimensions(W*H*D) 485*393*251 638*395*241
Gross Weight(Kg) 9.5 16.4
OTHER
Humidity 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature 0°C - 55°C
Storage Temperature -15°C - 60°C

Packaging & Shipping

Our Services

Samples and OEM, Warranty and After-Sale Service:

  • Welcome Solar Power Inverter Sample Test
  • OEM Welcomed
  • Warranty:1 Year
  • After-Sale Service: 24 Hour-Hot Line for Consultacncy and Technical Support
How To Ask for Support if products broken in warrenty?
1. email us about PI number, Product number, most importantly, is the
description of broken products, to the best, show us more detailed pictures or video.
2. we will submit your case to our after sales department.
3.Usually within 24 hours, we will email you the best solutions.
Company Information
Must Company Information

Headquarter & Factory Location In HongKong & Foshan,Guangdong China Mainland
Industry Experience 6-Year Manufacturer, 12-Year Trading, 6-Year Alibaba Gloden Supplier
Product Range Inverter,Solar Inverter, Off-grid Inverter Grid-tie Solar Inverter, MPPT Solar Charge Controller, Solar Panel, Solar Battery, Solar System
Main Market Africa, Middle East & Asia ( Ukraine, Russia, Vietnam, Pakistan, Nigeria, Kenya, South Africa, Ghana,etc.)
Factory 15000 Square Meters, 420 workers
Department 7-teams Marketing Dept, 2-team R&D, 1 Manufacturing Center, QA Office, After-sale Service Dept.
Certificate ISO9001:2008, CE, IEC,SAA, SGS, Soncap,etc
Patent Software Patent, Design Patent, Project Patent

FAQ

Frequently Asked Questions:

Q1: How to choose a right inverter?

A1:Tell us your demand, then our sales will recommend a suitable inverter to you.

Q2: What's the different between inverter and solar inverter?

A2: Inverter is only accept AC input, but solar inverter not only accept AC input but also can connect with solar panel to accept PV input, it more save power.

Q3: How about the delivery time?

A3: 7 days for sample; 25 days for bulk order.

Q4: What is the warranty of inverter?

A4: One year warranty on Must-Solar product.

Q5: How to solve the technical problem?

A5: 24 hours after-service consultancy just for you and to make your problem to solve easily.

Why not press the below "SEND" button to send us an email about your detail requirements?

Contact Monica to get more infos!!!
