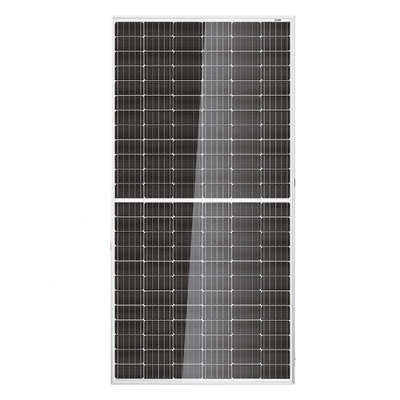

Half Mono Photovoltaic Solar Panel 390W 395W 400W PERC Monocrystalline Solar Panel PV Module 390W Cells CNCB390W72H

10000 Watts
MOQ
Half Mono Photovoltaic Solar Panel 390W 395W 400W PERC Monocrystalline Solar Panel PV Module 390W Cells CNCB390W72H
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Model Number: CNCB390W72H
Type: PERC, Half Cell
Panel Dimensions: 2020*1002*40mm
Panel Efficiency: 19.27
Certificate: CE
Warranty: 25Years, 25 Years Output Power Guarantee
OME ORDER: ACCEPTABLE
Grundinformation
Zertifizierung: CE
Model Number: CNCB390W72H
Zahlung und Versand AGB
Packaging Details: Carton+Pallet
Supply Ability: 1000000 Watt/Watts per Month
Produkt-Beschreibung
Products Description

High Quality Solar Panel
Mono crystalline
Poly crystalline

1. Rigorous quality control meeting the highest international standards
2. High-transmissivity low-iron tempered glass, strong aluminium frame Using UV-resistant silicon 3. Aesthetic appearance with excellent efficiency based on innovative photovoltalic technologies 4. High quality,strong aluminium frame,passing mechanical load testing 5400 Pa and wind pressure 2400Pa

5BB/9BB Mono Solar Cell

PV Junction Box
Aluminum frame
High transmission glass
Details Images
Product Paramenters
 Electrical Characteristics
Model
CNCB390W72H
Maximum Power at STC (Pmax)
390W
Optimum Operating Voltage (Vmp)
40.0V
Optimum Operating Current (Imp)
9.75A
Open-Circuit Voltage (Voc)
48.9V
Short-Circuit Current (Isc)
10.23A
Solar Module Efficiency (%)
19.27
Operating Temperature
-40 to 85℃
Maximum System Voltage
DC1000/1500V
Maximum Series Fuse Rating
15A
Power Tolerance
+/-3%
 Mechanical Characteristics
Solar cell
Mono-Crystalline158.75*79.375mm
No.of cells
144 (6×12+6×12)
Front glass
3.2mm tempered glass
Frame
Anodized aluminium alloy
Dimensions
2020mm*1002mm*40mm
Weight
24kg
 Temperature Coefficient
Nominal Operating Cell Temperature (NOCT)
45℃+/-2℃
Temperature Coefficient of Pmax
-0.39%/℃
Temperature Coefficient of VOC
-0.29%/℃
Temperature Coefficient of ISC
+0.049%/℃
STC:Irradiance 1000W/㎡,Modules Temperature 25℃,AM=1.5
Product packaging
Customer Photos
Norway--Solar Tracking System
Saudi Arabia-Wind Solar Hybrid System
Hungary-Off Grid Solar System
Panama-Off Grid Solar System
South Africa-Energy Storage System
China-On Grid Solar System
USA-Grid Tied Solar System
Indonesia-Rooftop Solar Power Station
Ukraine-On Grid Solar System
UK-Ground Solar Power Station
