Home Solar Power System 48V or 51.2V LiFePO4 Battery Wall Mounted Off Grid Inverter for Country House Use

1 Set
MOQ
$273.00(1 - 1 Sets) $260.00(>=2 Sets)
Preis
Home Solar Power System 48V or 51.2V LiFePO4 Battery Wall Mounted Off Grid Inverter for Country House Use
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Model Number: MT
Input Voltage: 12V/24V/48V/96V
Output Voltage: 110V/220V/230V/240V
Type: DC/AC Inverters
Output Type: Single
Output Current: 10-100A
Output Frequency: 50Hz/60Hz
Size: 302*150*183(mm)~
Weight: 3KG~300KG
output Type: single
Temperature: -10 ~50℃
Relative humidity: 20%~93%
Altitude: Below 1000m
wave form: pure sine wave
Certificate: CE ROHS
Warranty: 18 Months
Transfer time: <10ms(typical load)
Material: Aluminum profiles
Application: Solar Power System Home
Grundinformation
Zertifizierung: CE ROHS
Model Number: MT
Zahlung und Versand AGB
Packaging Details: packing with wodden case/plywood case.
Produkt-Beschreibung
Company Information



1) MARS has sold the system to Nigeria, colombia ,Burkina faso,Egypt,Bolivia,Kenya,Ghana,south africa,Argentina ,philippines,congo , etc.almost 85% of africa countries !

2)With a professional installation team, Have went to Egypt,  chad,Nigeria,Ghana,Doha,pakistan for installation

3) We insist on using good quality raw material whenever and wherever.

4) With customer’s’ praise as an assurance,MARS is a guaranteed brand.

5) Our company's philosophy is: one-stop solar energy service platform.









Product Description

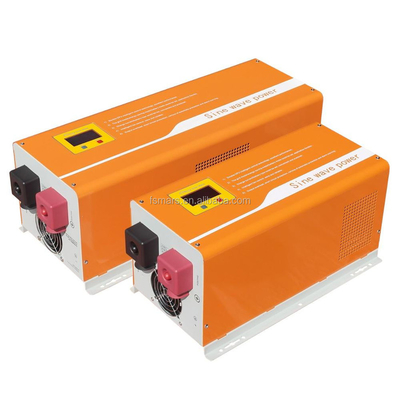

MARS power inverter, pure sine wave, with MPPT charge controller built-in, off grid single phase model have power design 300w upto 10kw, only inverter without controller built-in model have power design 300w upto 30kw, for wind power system or solar system using.



Inverter connection diagram




Main features

1) Excellent performance because of double – MCU intelligent design;

2) Pure sine wave output for compatibility with loads of different types;

3) Visualization of operation status of the equipment through a digital LCD;

4) A wide range of input voltage, accurate output and full automatic voltage stabilization;

5) Settable battery type and charge current for the charge management of batteries of different types;

6) Settable mains supply preferred mode, energy – saving mode and battery preferred mode for easy meeting if the needs of different users;

7) Overall protection functions (battery overvoltage protection, battery under-voltage protection , overload protection , short circuit protection and over temperature protection).






Product Overview

With or double MCUs , the product provides different charge voltage and charge currents to realize charge management for batteries of different types, Its mains supply preferred mode, energy – saving mode and battery preferred mode are all settable , thus making it easy to meet the different application needs of users. It has and LCD. It is widely applied to families , schools, streets , frontier defense , pasturing areas, industrial equipment satellite communication equipment, military vehicle – borne equipment, ambulances, police cars , ships , etc.





1.5KW-6KW Type





Model:

MT1.5K

MT 2K

MT 3K

MT 4K

MT 5K

MT 6K

Rated power

1500W

2000W

3000W

4000W

5000W

6000W



Battery

Rated voltage

12V/24VDC

24V or 48VDC

48VDC or 96VDC

Charge current

5-30A

Input

Voltage

85-138VAC/170-275VAC

Frequency

45-65HZ







Output

Voltage

110V-240VAC±5% (Inversion mode)

Frequency

50/60HZ±1% (inversion mode)

Output wave

Pure sine wave

Conversion time

<10ms (typical load)

Efficiency

>90% (85% resistive load)

Overload

110-120%/30S; >160%/300ms

Protection function

Battery overvoltage protection, battery undervoltage protection, overload protection, short circuit protection, overtemperature protection,etc

Ambient temperature for operation

0-40

Ambient temperature for storage

-15-+50

Operation/storage conditions

0-90% (no condensation)

External dimension:

480*222*182mm

655*248*182mm

Packing dimension:

560*290*235mm

735*316*235mm







Packaging & Shipping







Certification

FAQ



FAQ

Q:What's the advantage for this solar system from MARS?
A: 1) have install support ,if you need ,we can send engineer for install support .(we already come to chad ,pakistal ,doha,egypt for installation)
2) have many project picture all over the world ,mostly is africa market .--setting up a suitable system for you !
3) have many customer feedback that solar system working perfect ,choose MARS,choose satisfaction.

Q: MARS normal system how long can all appliances be turned on at the same time?
A:for full capacity load is 7-11 hours , in day time ,used sun power directly take the load 3-5hours . at night time 4-6 hours . Optimum Usage to Extend Battery Life
with electricity or generator ,can be turned 24 hours

Q: Who arranges the shipping?
A: We could help you arrange the shipment, we have good service forwarder in Guangzhou.

Q: Can the inverter switch automatically to national grid to protect batteries.
A: Yes. It can also connect to third generator, as like diesel generator. Please tell our sales before production.

Q: What is the lifetime of the solar power system?
A: Solar panel’s lifetime are 25 years,battery,solar inverter 6-8 years .

Q. how do you package your products for shipping.
A:solar panel, pallet packing; PV combiner, plywood packing; Inverter, plywood packing; Battery, pallet packing; Cable, carton box packing .
Send inquiry get more information!

Q. what are the possible days between ordering and shipping, shipping and arrival in Africa.
produce day about 7-15days .shipment days need about 25-40days

Q:what is MARS solar system after sales service?
A: solar panel 10 years, other parts 2 years warranty
ship NEW panel and battery for service;
change inverer fuse for service, save time and money.

Buyer Feedback













Our Services

 We have a professional installation team, can provide customers with quality installation services.





MT model inverter normal design surface color is orange, other color can be designed as per customer need base on quantity.
