Home Use Solar Power Efficiency Hybrid Solar Power System High Power Inverter

1.0 set
MOQ
Home Use Solar Power Efficiency Hybrid Solar Power System High Power Inverter
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Model Number: 3KW
Input Voltage: 24VDC
Output Voltage: 220VAC
Output Current: 13.6A
Output Frequency: 50/60HZ
Output Type: Single, Three Phase
Size: 486*248*179mm
Type: DC/AC Inverters
Inverter Efficiency: 0.85-0.92
Certificate: CE ROHS/ISO9001
Warranty: 12 Months
Weight: 22KGS
Product name: High efficiency hybrid solar power inverter
Keyword: solar power inverter
Solar system type: hybrid solar power inverter
Application: Home use solar power system
Inverter type: Low Frequency Inverter
Waveform: Pure Sine Wave
Protection: overload, short circuit protection
Rated power: 3KW
Input frequency: 45-65HZ
OEM: Acceptable
Grundinformation
Zertifizierung: CE ROHS/ISO9001
Model Number: 3KW
Zahlung und Versand AGB
Packaging Details: Standard export packaging/wooden packaging
Supply Ability: 50 Set/Sets per Month
Produkt-Beschreibung
Product Description
Features:
* Double CPU intelligent control technology, excellent performance .
* The grid mode/energy-saving mode/battery mode could be set, application flexible.
* Charge current/battery type could be set, convenient and practical.
* Intelligent fan control, safe and reliable.
* Pure sine wave AC output, and be adapt to all kinds of loads.
* LCD display equipment parameter in real-time, operation status be clear at a glance.
* Output overload, short circuit protection, various of automatic protection and alarm warning.
Technical Parameters
Type: FT
1KW
1.5KW
2KW
3KW
4KW
5KW
6KW
Rated power
1000W
1500W
2000W
3000W
4000W
5000W
6000W


Battery
Rated voltage
12VD/24VDC /48VDC
24VDC/48VDC
48VDC/96VDC
Charge current
30A(default)-C0-C6 can be set
Battery type
U0-U7 can be set

Input
Voltage range
85-138VAC/170-275VAC
Frequency
45-65Hz






Output
Voltage range
50/60Hz±1% ( Inverter mode)
Frequency
110VAC/220VAC; ±5%( Inverter mode)
Output wave
Pure sine wave
Switching time
<10ms( traditional load)
Efficiency
>85% (80% Resistance load)
Overload
110-120%/30S; >160%/300ms;
Protection
Battery over voltage protection, battery under voltage protection, overload protection, short circuit protection, over temperature protection and more.
Operating ambient temperature
0-40ºC
Storage ambient temperature
-15 - +50ºC
Operating/storage ambient
0-90% no condensation
Machine size: L*W*H (mm)
480*222*182
655*248*182
Package size: L*W*H (mm)
560*290*235
735*316*235
Detailed Images

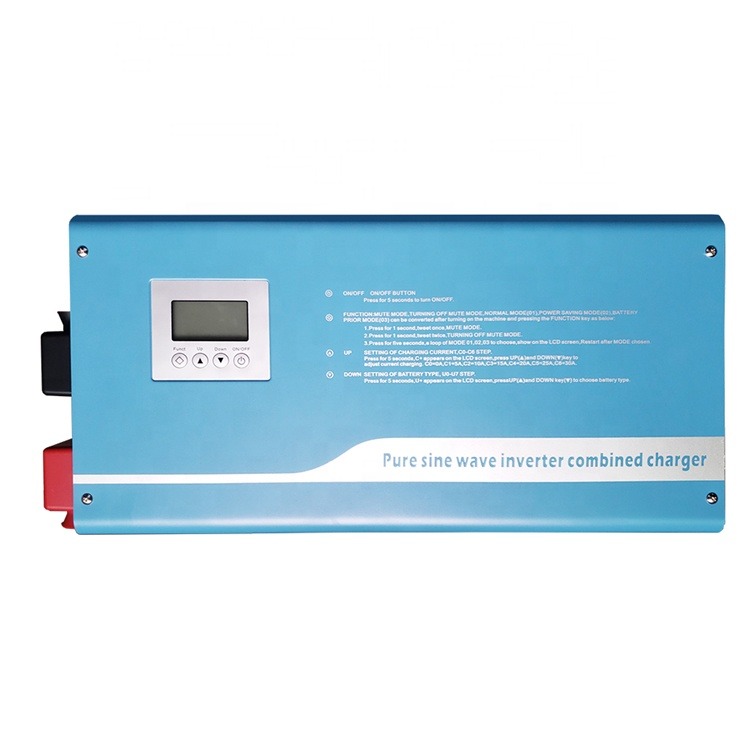

  • Display working status, operation button, convenient operation

Pure sine wave output wave
A cooling fan, AC output input Insurance seat
Packaging & Shipping
FAQ
Q1: Can I get one for sample?
A1: Yes, we accept sample order or trial order for testing first.

Q2: What's the price and MOQ?
A2: Please just send me inquiry, your inquiry will be replied within 24 hours, we will let you know the latest price and MOQ.

Q3: What's you delivery time?
A3: It depends on your quantity, but usually, 7 days for sample order, 30-45 days for batch order

Q4: How about your payment and shipment?
A4: Payment: We accept T/T, Western Union, Paypal etc. terms of payment.
Shipment: For sample order, we use DHL, TNT, FEDEX, EMS etc., for batch order, by sea or by air( through our forward)

Q5: How about your warranty?
A5: Normally, we provide 1 year warranty,and whole life technical support.

Q6: Do you have you own factory?
A6: Yes, we are leading manufacturer mainly in off grid solar power inverter, solar charge controller and systems ect. for about 12 years.
