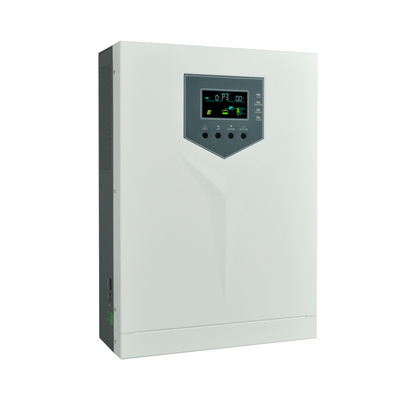

High quality china manufacture 1600W mppt growatt hybrid split phase off grid solar inverter VT1600W

1 piece
MOQ
High quality china manufacture 1600W mppt growatt hybrid split phase off grid solar inverter VT1600W
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Model Number: VT1600W
Input Voltage: 12V/24V
Output Voltage: 220VAC±10%
Output Current: 40A/20A
Output Frequency: 50HZ/60HZ±1%
Inverter Efficiency: >98%
Product Name: Solar inverter
Output Voltage (AC): 220VAC±10%
Frequency: 50HZ/60HZ±1%
Waveform: Pure sine wave
Transfer time: ≤10ms(UPS mode)/≤20ms (INV mode)
Bypass Mode: Yes
Load peak ratio: Max 3:1
Efficiency: >98%
Battery Type: VRLA / GEL /GEL DEEP CYCLE /LITHIUM
Max AC Charging Current: 40A/20A
Grundinformation
Model Number: VT1600W
Zahlung und Versand AGB
Packaging Details: cotton
Supply Ability: 1000 Piece/Pieces per Week
Produkt-Beschreibung
PRODUCT DISPLAY

Features：

Pure sine ware output
Optional MPPT/PWM solar charge controller(30A-120A)
MPPT Efficiency max 98%
High Efficiency Design & ”Power Saving Mode” to Conserve Energy
Smart battery charger design for optimized battery performance
Selectable charging current based on applications
Auto Restart when Ac in recovering
Built in Transformer, overload and Ultra-high voltage protection
Available for many kinds of battery
self design PCB board and cooling system
Three anti-paint on PCB board -dust-proof, moisture-proof and insect-proof
PRODUCT INFORMATION
（VT 系列太阳能逆变器参数表）VT series Solar Inverter Data Sheet
型号 MODEL
VT1000VA
VT1500VA
VT2000VA
VT3000VA
VT3800VA
VT5000VA
VT6000VA
VT8000VA
VT10000VA
输入 Input
容量Capacity (VA)
1000VA
1500VA
2000VA
3000VA
3800VA
5000VA
6000VA
8000VA
10000VA
电压 Voltage (DC)
12V/24V
24V/48V
48V
额定电压 Nominal Voltage
220VAC
电压范围 Voltage Range
154-264VAC±3V（Normal Mode) ;185-264VAC±3V(UPS Model)
频率 Frequency
50/60Hz±5%
输出 Output
额定输出功率
Rated output power
800W
1200W
1600W
2400W
3000W
4000W
4800W
6400W
8000W
输出电压 Output Voltage (AC)
220VAC±10%
频率 Frequency
50HZ或60HZ±1%
波形 Waveform
纯正弦波 Pure sine wave
转换时间 Transfer time
≤10ms(UPS mode) UPS模式 /≤20ms (INV mode) 正常模式
旁路模式 Bypass Mode
Yes
负载峰值比
Load peak ratio
（Max 最大) 3:1
Efficiency 效率
>98%
保护功能 Protection
输出保护 Output Protection
Overload Protection, Short Circuit Protection, Low Voltage Protection, (Battery Reverse Connection optional).
过载保护、短路保护、低压保护，（电池反接可选）
电池 Battery
电池类型 Battery Type
VRLA / GEL /GEL DEEP CYCLE /LITHIUM(铅酸电池，胶体电池，胶体深循环电池和锂电池）
最大市电充电电流
Max AC Charging Current
18A/8A
30A/15A
40A/20A
30A/15A
35A/20A
53A/30A
30A
44A
55A
电池充电电压
Battery charge voltage
13.75/27VDC
27/54VDC
54VDC
低电关机电压
Low Level disconnect (Selectable)
9.5V-11.5V/19V-23V
19V-23V/38V-46V
38V-46V
PWM 工作电压范围
PWM controller Voltage range
15V-30VDC/30V-60VDC
30V-60VDC/60V-105VDC
60VDC-150VDC
PWM 最大开路电压
PWM Maximum PV display open circuit voltage
30V/60V
60V/105V
105V
最大太阳能板输入功率
Maximum PV array power
800W/1600W
1600W/3200W
3200W
MPPT 工作电压范围
MPPT control voltage range
15V-150VDC/30V-150VDC
30V-150VD/60V-150VDC
60V-150VDC
MPPT 最大开路电压
MPPT Maximum PV display open circuit voltage
150VDC
MPPT 最大充电电流
Maximum MPPT charge current
60A
LCD 指示状态
LCD Indicator status
Input AC,Output AC （AC输入输出电压); Battery DC.Output Load （电池电压，输出负载）
Alarm,Fault （报警和故障代码）; Battery Charge Level （电池电量）; Output Frequency （输出频率）
LED 指示灯状态
LED Indicator status
AC Line ln:Green 市电灯：绿色; Inverter: Green 逆变灯：绿色
Charging:Yellow 充电灯：黄色; Alarm: Red 故障灯：红色
故障 Alarm
低电量报警 Low battery alarm
Audible alarm-1 beeping per seconds 声音警报 - 蜂鸣器一秒一鸣
过载报警 Overload alarm
Audible alarm-continuous beeping 声音警报-蜂鸣器长鸣
When the overload is less than 130%,Audible alarm-1 beeping per seconds, and the output will be turned off after 30s.
When the overload is larger than 150%, the output will be turned off after 300ms.
过载小于130%蜂鸣器一秒一鸣,30S后关断输出，超载大于150%时300mS后关断输出
故障 Fault
Audible alarm-continuous beeping 声音警报-蜂鸣器长鸣
环境 Environment
工作温度 Temperature
0℃~40℃
存放温度 Storage Temperature
﹣15℃~45℃
相对湿度Relative humidity
﹣10℃~90℃ Non condensing 无凝结
噪音 Accoustic Noise(db)
＜45dB
尺寸 Size L*W*H(mm)
470mm*335mm*210mm
720mm*335mm*210mm
净重 Net Weight (kg)
12
12.5
14.5
17.5
22
22
23
30
33
RELATED PRODUCTS
COMPANY PROFILE
OTHER APPLICATION
PACKAGE & TRANSPORT
FAQ
A) How could I get a sample?
Before we received the first order, please afford the sample cost and express fee. We will return the sample cost back to you within your first order.

B) Sample time?
Existing items: Within 15 days.

C) Whether you could make our brand on your products?
Yes. We can print your Logo on both the products and the packages if you can meet our MOQ.

D) Whether you could make your products by our color?
Yes, The color of products can be customized if you can meet our MOQ.

E) How to guarantee the quality of your products?
1) Strict detection during production.
2) Strict sampling inspection on products before shipment and intact product packaging ensured.
