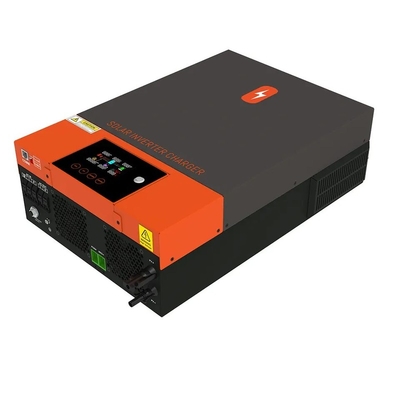

Startseite /Produkte/Solarhybrid-Wechselrichter/WIFI&GPRS available for IOS and android High Frequency 6.2KW 48V 220V Inverter Charger Built-in 120A MPPT Charge Controller Pure Sine Wave Hybrid Solar Inverter

WIFI&GPRS available for IOS and android High Frequency 6.2KW 48V 220V Inverter Charger Built-in 120A MPPT Charge Controller Pure Sine Wave Hybrid Solar Inverter

1.0 piece
MOQ
WIFI&GPRS available for IOS and android High Frequency 6.2KW 48V 220V Inverter Charger Built-in 120A MPPT Charge Controller Pure Sine Wave Hybrid Solar Inverter
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Model Number: POW-HVM6.2M-48V
Input Voltage: 24V
Output Voltage: 220V
Output Frequency: 50Hz/60Hz(Auto sensing)
Output Type: Single
Size: 100*300*440mm
Type: DC/DC Converters, Pure sine wave solar inverter
Inverter Efficiency: 98%
Certificate: CE
Warranty: 2 Years
Weight: 9.7KG
Inverter Type: High frequency Inverter
Phase: Single Phase
Max Panel Input Volt: 450V-500V
Max. PV Array Power: 6000W
Battery Type 1: Lithium Batteries, Flooded Batteries, Gel Batteries, User Mode
Battery Type 2: Lead-acid Batteries, AGM Batteries
Feature 1: WIFI&GPRS available for IOS and android
Feature 2: Output power factor 1.0
Peak Efficiency: 93%
Grundinformation
Zertifizierung: CE
Model Number: POW-HVM6.2M-48V
Zahlung und Versand AGB
Packaging Details: CARTON
Produkt-Beschreibung
Product Description
This is a multi-function inverter/charger, combining functions of inverter, solar charger and battery charger to offer
uninterruptible power support with portable size. Its comprehensive LCD display offers user-configurable and easy-accessible
button operation such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different
applications.

Features
• Pure sine wave inverter
• Configurable input voltage range for home appliances and personal computers via LCD setting
• Configurable battery charging current based on applications via LCD setting
• Configurable AC/Solar Charger priority vía LCD setting
• Compatible to mains voltage or generator power
• Auto restart while AC is recovering
• Overload/ Over temperature/ short circuit protection
• Smart battery charger design for optimized battery performance
• Cold start function

Basic System Architecture
The following illustration shows the basic application for this inverter/charger. It also includes the following devices to have a complete running system:
• Generator or Utility.
• PV modules

Consult with your system integrator for other possible system architectures depending on your requirements.
This inverter can power all kinds of appliances in-home or office environment, including motor-type appliances such as tube
lights, fans, refrigerators, and air conditioners.
Note:
How to correctly match the battery capacity of the system is determined according to the specific usage requirements of the load
and application scenarios, otherwise it will easily lead to insufficient battery capacity or excessive waste of power generation.
For details, please refer to the manual recommendation or consult online customer service.
MODEL
POW-HVM3.6M-24V
POW-HVM6.2M-48V
Phase
1-phase
Maximum PV Input Power
6200W
Rated Output Power
3600W
6200W
Maximum Charging Power
6200W
GRID-TIE OPERATION
PV Input(DC)
Nominal DC Voltage/Maximum DC Voltage
360VDC/500VDC
Start-up Voltage/initial Feeding Voltage
120VDC
MPPT Voltage Range
90VDC~450VDC
Number of MPPT Trackers/Maximum Input Current
1/27A
GRID OUTPUT(AC)
Nominal Output Voltage
220/230/240VAC
Output Voltage Range
195.5-253VAC
Nominal Output Current
15.7A 26.1A
Power Factor
>0.9
EFFICIENCY
Maximum Conversion Efficiency(DC/AC)
97%
OFF-GRID OPERATION
AC INPUT
AC Start-up Voltage/Anto Restart Voltage
120-140VAC/180VAC
Acceptable Input Voltage Range
90-280VAC OR170-280VAC
Maximum AC Input Current
30A
40A
PV Input(DC)
Nominal DC Voltage
500VDC
MPPT Voltage Range
90VDC-450VDC
Number of MPPT Trackers/Maximum Input Current
1/27A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage
24VDC 48VDC
Output Waveform
Pure sine wave
Efficiency(DC to AC)
94%
HYBRID OPERATION
PV INPUT(DC)
Nominal DC Voltage/Maximum DC Voltage
360VDC/500VDC
Start-up Voltage/initial Feeding Voltage
120VDC
MPPT Voltage Range
90VDC-450VDC
Number of MPPT Trackers/Maximum Input Current
1/27A
GRID OUTPUT(AC)
Nominal Output Voltage
220/230/240VAC
Output Voltage Range
195.5-253VAC
Nominal Output Current
15.7A 26.1 A
AC INPUT
AC Start-up Voltage/Anto Restart Voltage
120-140VAC/180VAC
Acceptable Input Voltage Range
90-280VAC or 170-280VAC
Maximum AC Input Current
30A
40A
BATTERY MODE OUTPUT(AC)
Nominal Output Voltage
220/230/240VAC
Efficiency (DC to AC)
94%
BATTERY & CHARGE
Nominal DC Voltage
24VDC
48VDC
Maximum Solar Charging Current
120A
Maximum AC Charging Current
80A
Maximum Charging Current
120A
GENERAL
PHYSICAL
Dimension D *W *H
420*310*120
Net Weight(kgs)
11
13
INTERFACE
Communication Port
RS232/WIFI/BMS
ENVIRONMENT
Humidity
0-90%
Operating Temperature
-10 to 50 掳C
